1. Technical highlights:
Automatic adjustment of bag width
Mechanical transmission technology
Operating with a touch screen makes maintenance and inspection easier
It can be used in various automatic filling devices
Automatic lubricating oil system
Vacuum chamber for aviation engraving and milling

II. Product Overview
Scope of application: Packaging for various pickled vegetables and ready-to-eat snack foods.

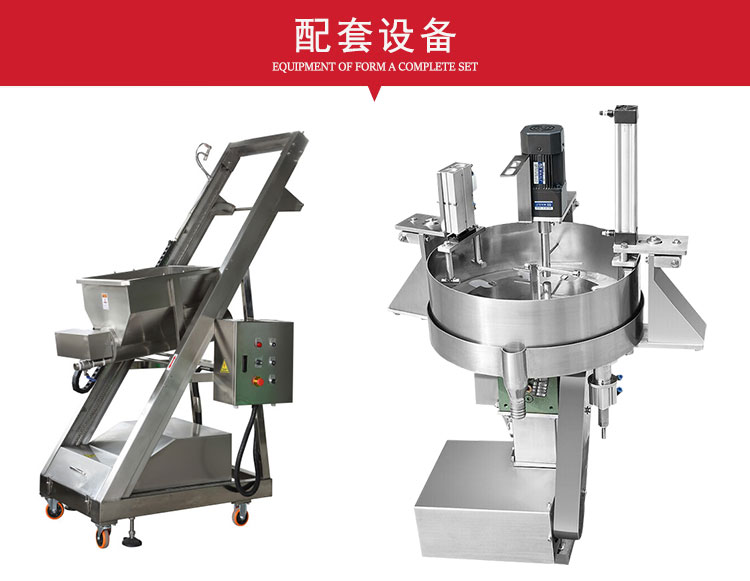

This equipment is composed of a bag-feeding vacuum packaging machine, a single-head elevator, and a shrink cup feeder.

III. Product Performance
(1) The bag-feeding fully automatic vacuum packaging machine consists of two rotary integrated machines (the filling system and the vacuum system respectively). The vacuum system features continuous rotary motion, with no inertia or impact force.
(2) Quickly change the packaging bag specifications, and automatically adjust to different bag specifications with one click.
(3) Meet the hygiene standards for food processing machinery. The parts of the machine that come into contact with materials or packaging bags are processed using 304 stainless steel or other materials that meet food hygiene requirements, ensuring the hygiene and safety of food.
(4) Easy to operate: Equipped with a Siemens PLC and POD (touch screen) electrical control system, it boasts a user-friendly interface and is easy to operate. Bags without material, seals, or fillers can be recycled, ensuring no waste of bags.
(5) Sealing temperature detection function: If the heating plate is damaged, an alarm will be automatically triggered on the touch screen.
(6) The sealing method adopts instantaneous heating and water cooling to achieve a smoother and more aesthetically pleasing seal.
(7) The vacuum chamber is crafted from aviation-grade aluminum using computer-aided machining, ensuring no hardening, no deformation, as well as excellent sealing and durability.

IV. Technical Parameters
